Enphase IQ BATTERY-10C-1P-NA 10kWh Battery

Enphase IQ Battery 10C + Cover IQBATTERY-10C-1P-NA Bundle

The Enphase IQ Battery 10C is Enphase’s 4th-generation AC-coupled home battery storage system. It delivers 10 kWh usable capacity and 7.08 kW continuous power in a compact, high-density design, with whole-home backup and solar self-consumption optimization.

Integrate with Grid-only or Solar. Integration with Solar or Grid-tied will require additional components (IQ Combiner 6C) - contact sales@EVunited.com to discuss your home energy storage and whole-home backup design requirements and to obtain an optional installation quote.

Engineered as an all-in-one system, it combines two 5 kWh Lithium Iron Phosphate (LFP) battery units with embedded grid-forming microinverters. The result is higher power output, greater energy density, simpler installation, and strong surge capability compared to previous generations.

Compatible With

• Microinverters: Enphase IQ8 series microinverters on the same solar array
• Combiner: Enphase IQ Combiner 6C
• Metering: Enphase IQ Meter Collar
• Scalability: Multiple 10C units up to 80 kWh total
• Not Compatible With: Legacy Encharge / IQ Battery 3T or 10T units — 4th-generation architecture does not mix with earlier generations

Key Performance Highlights

• Usable Capacity: 10.0 kWh
• Continuous Output: 7.08 kW (7.08 kVA at 240V)
• Peak Power: 14.16 kVA (3 seconds) / 11.33 kVA (10 seconds) — supports heavy inductive loads with Power Start technology
• Round-Trip Efficiency: 96% DC | 90% AC
• Scalability: Up to 80 kWh total (multiple units)
• Neutral-Forming: Built-in microinverters simplify installation

Built for Safety, Durability & Quiet Operation

• Chemistry: Cobalt-free LFP for thermal stability and cycle life
• Warranty: 15 years (up to 6,000 cycles)
• Enclosure: NEMA 3R outdoor-rated with passive cooling (<33 dBA)
• Operating Temps: Charging -4°F to 122°F | Discharging -4°F to 131°F
• Dimensions: 24.5″ H × 28″ W × 14.4″ D
• Weight: 317 lbs total installed (~126 lbs per section for easier handling)
• Mounting: Wall or pedestal options

Enphase Ecosystem Integration
Pair the IQ Battery 10C with IQ8 series microinverters, the IQ Combiner 6C, and IQ Meter Collar for whole-home backup. Monitor and control the system through the Enphase App, including scheduling, Storm Guard, and over-the-air updates

What's in the box:

(2) 5kWh battery units compatible with Enphase IQ 10C Unit

(1) IQ Battery 10C battery cover

(1) Wall mounting bracket

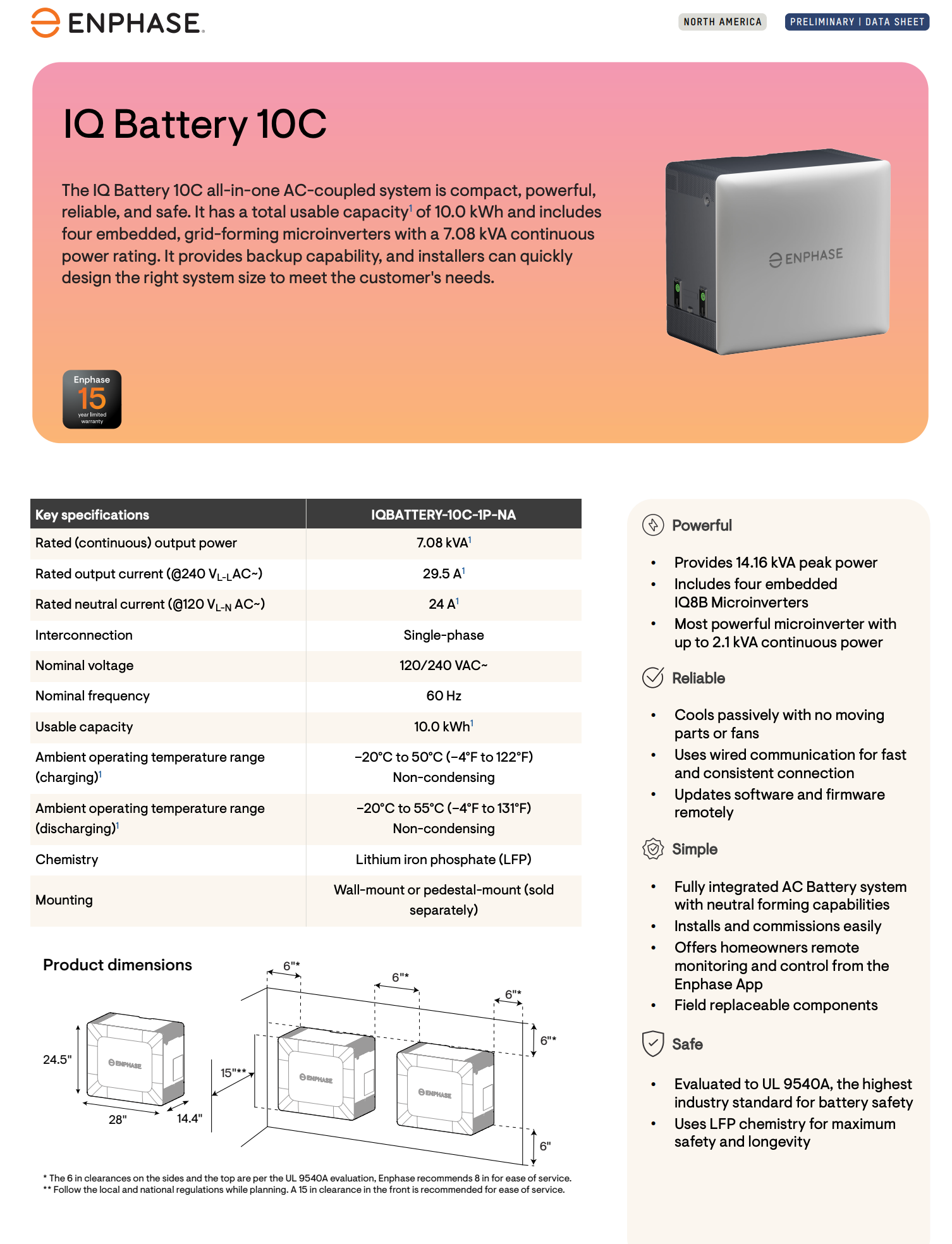

Technical Specifications:

• Power rating: 7.08 kVA
• Energy capacity: 10 kWh
• DC round-trip efficiency: 96%
• AC round-trip efficiency: 90%
• In backup mode supports 24 A of load imbalance between L1 and L2

Please contact sales@EVunited.com to assist with formulating a Enphase battery energy storage and whole-home backup solution for your home residence.
